SECRET 22

A fast and funky performance gaff cutter and also a versatile range of free-spirited little ships including a junk inspired lug rigged micro cargo carrier or ship’s boat, a solar electric people mover, an open launch, cruiser, racer or delivery pick-up, the choice is yours. Just like the new Stornaway 30, the Secret 22 will be built using best practice, new generation fibreglass and comes with a full custom design service. The aim is as always, excellence, and with apologies to Jaguar copywriters of the 1950s – Grace, Pace and Space. Add to that safety and longevity. The original Secret 20 is soon to be back in production in the USA but the 22 takes it to a new level entirely. The pictures tell the story.

Full details with the PDF — clickdownload PDF

IMAGES

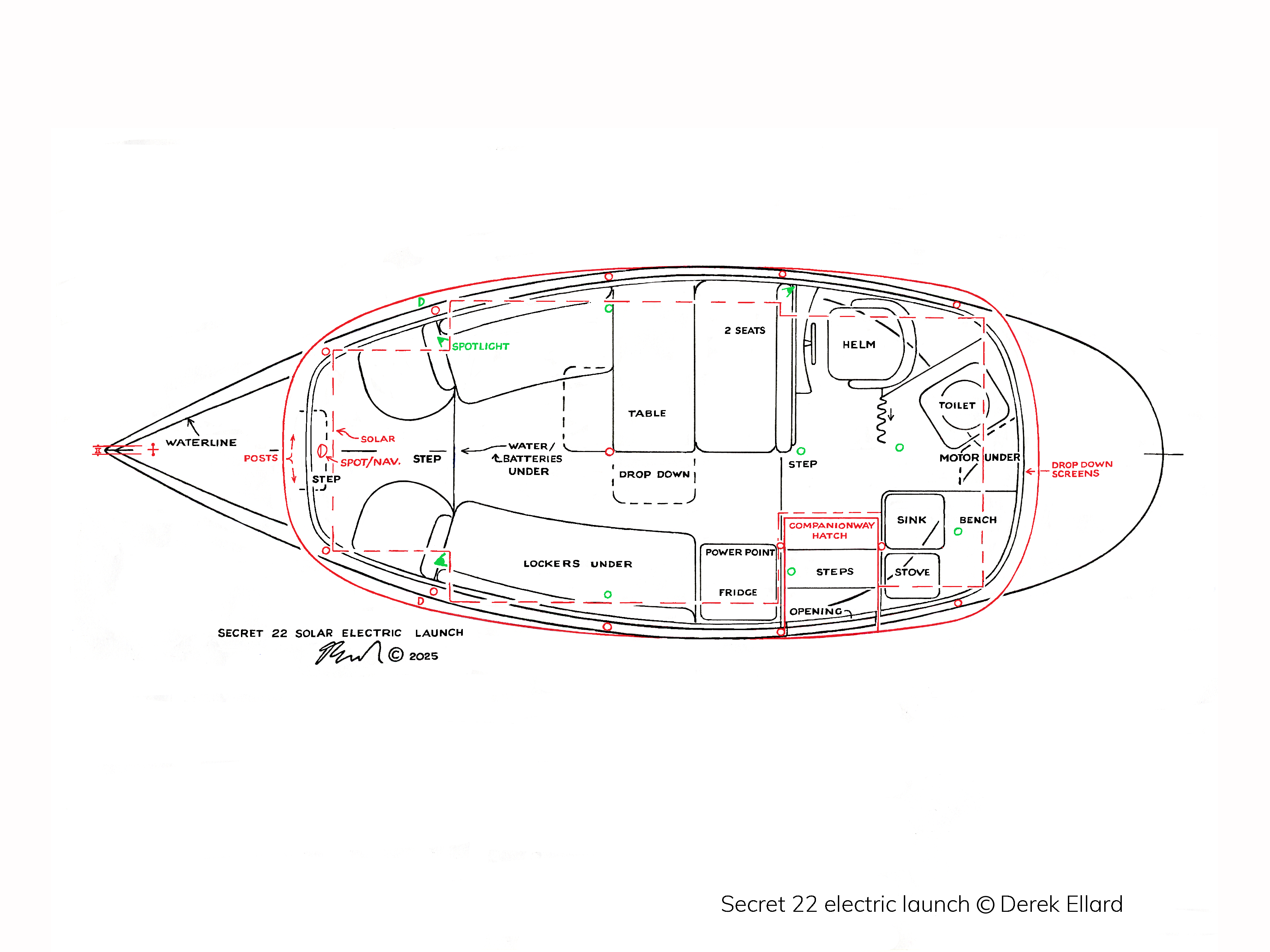

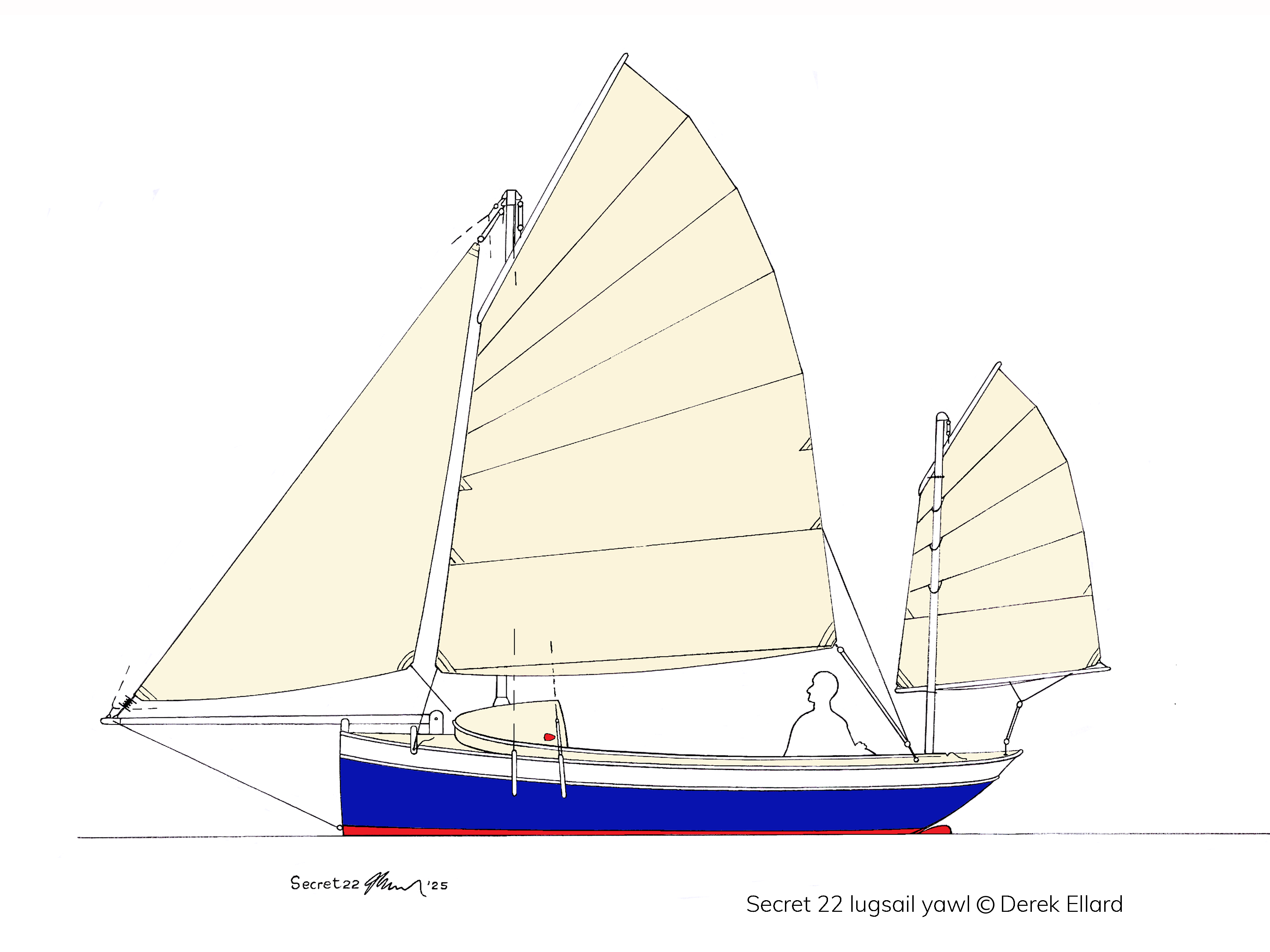

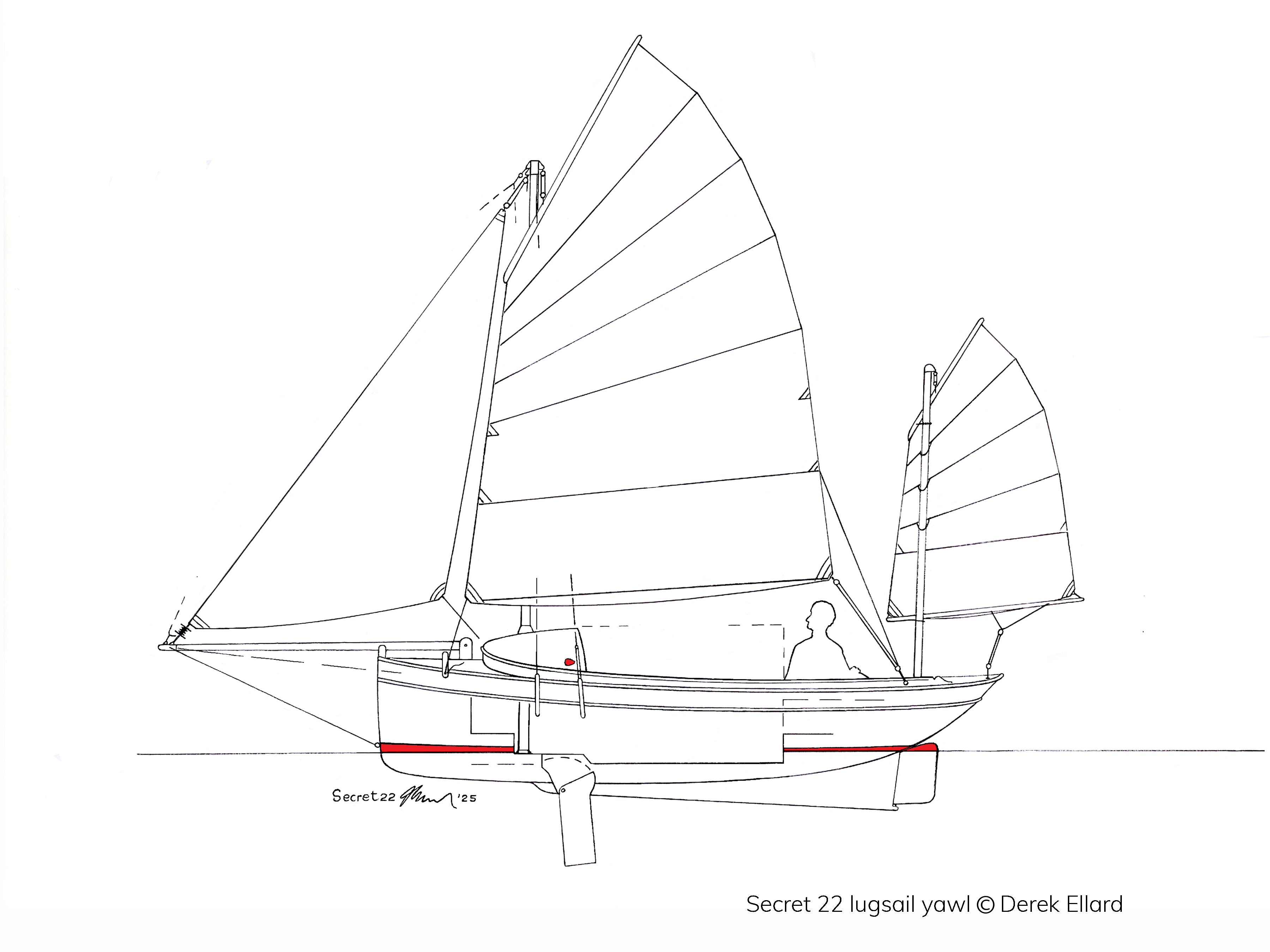

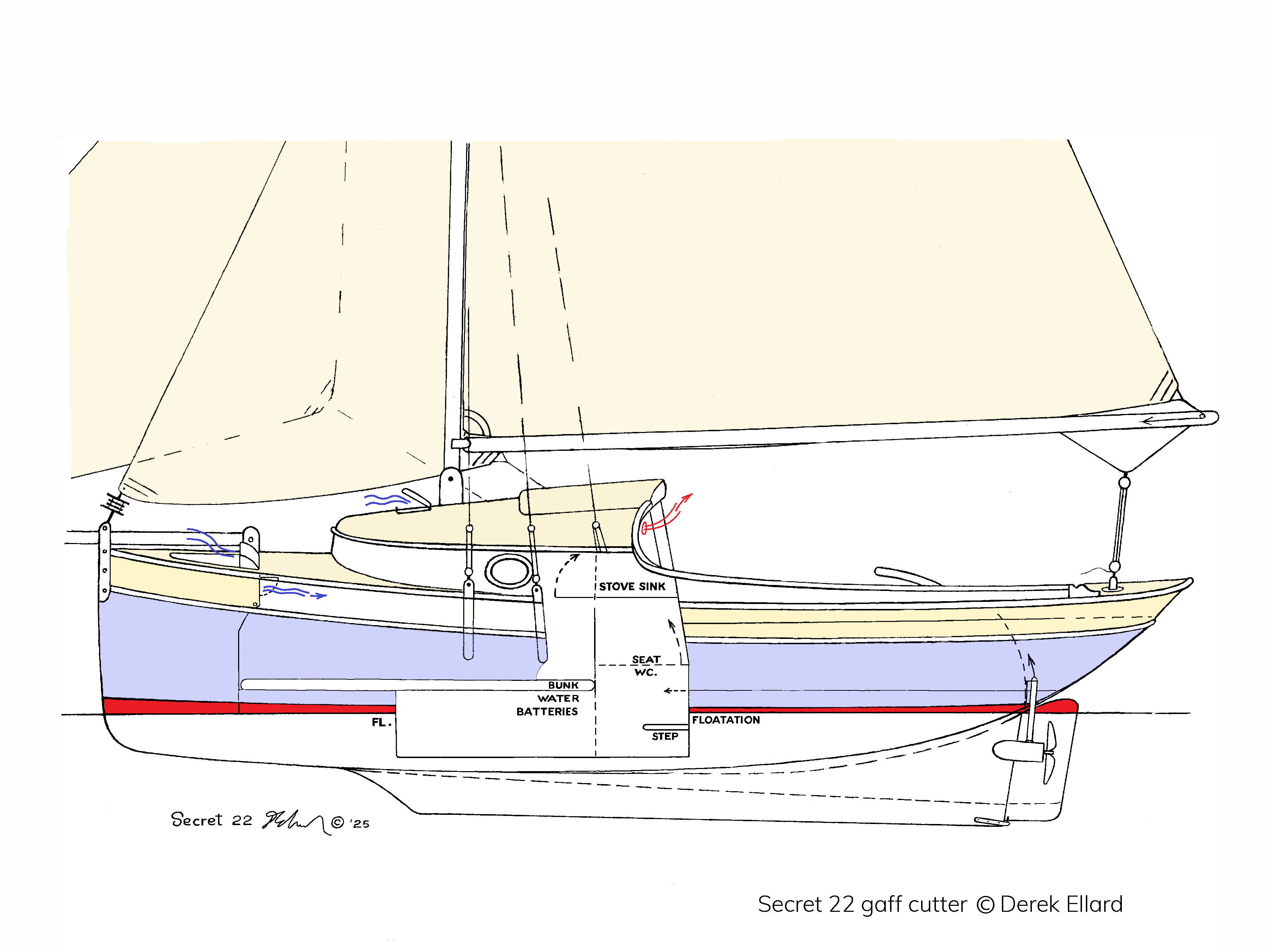

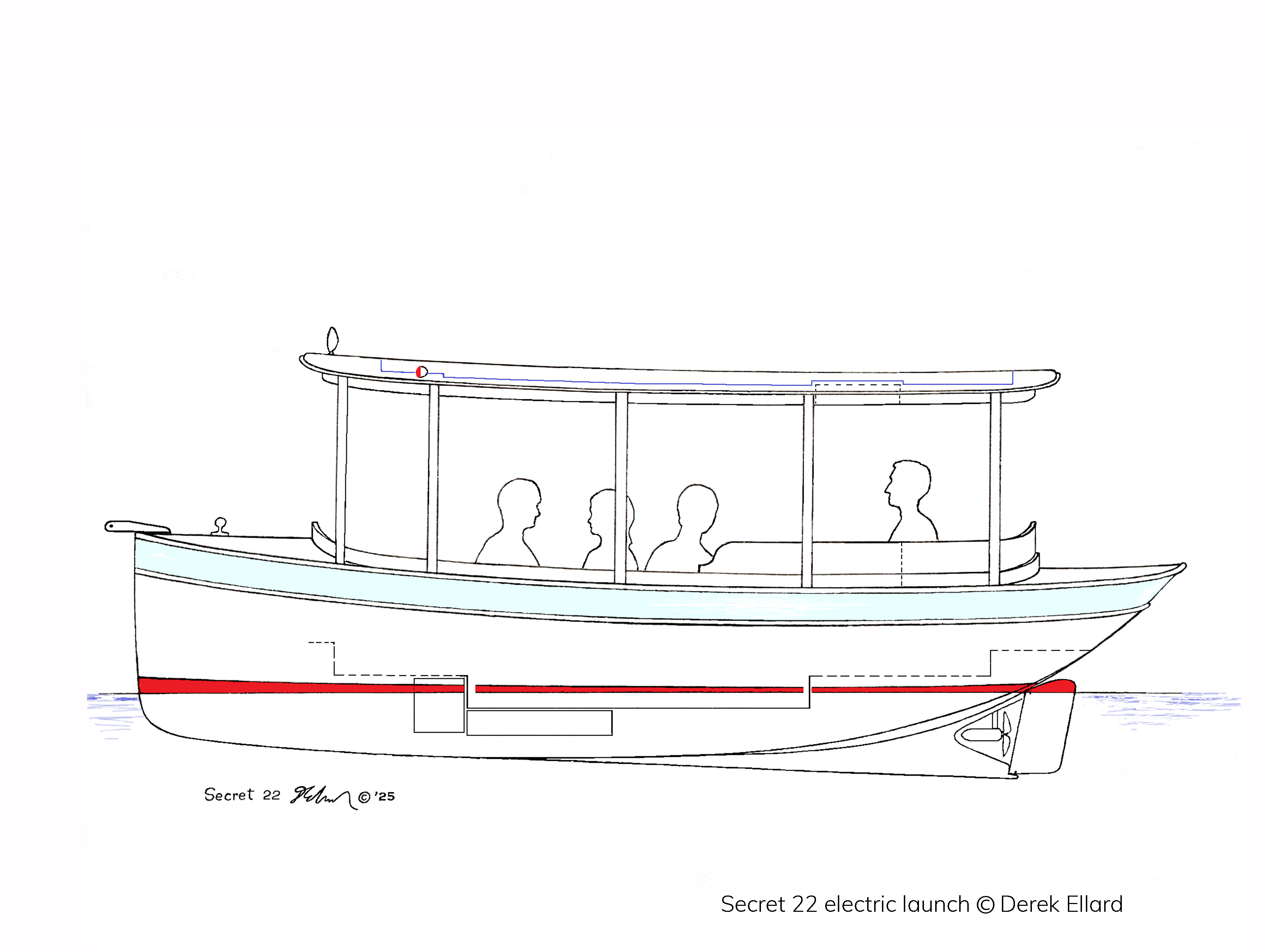

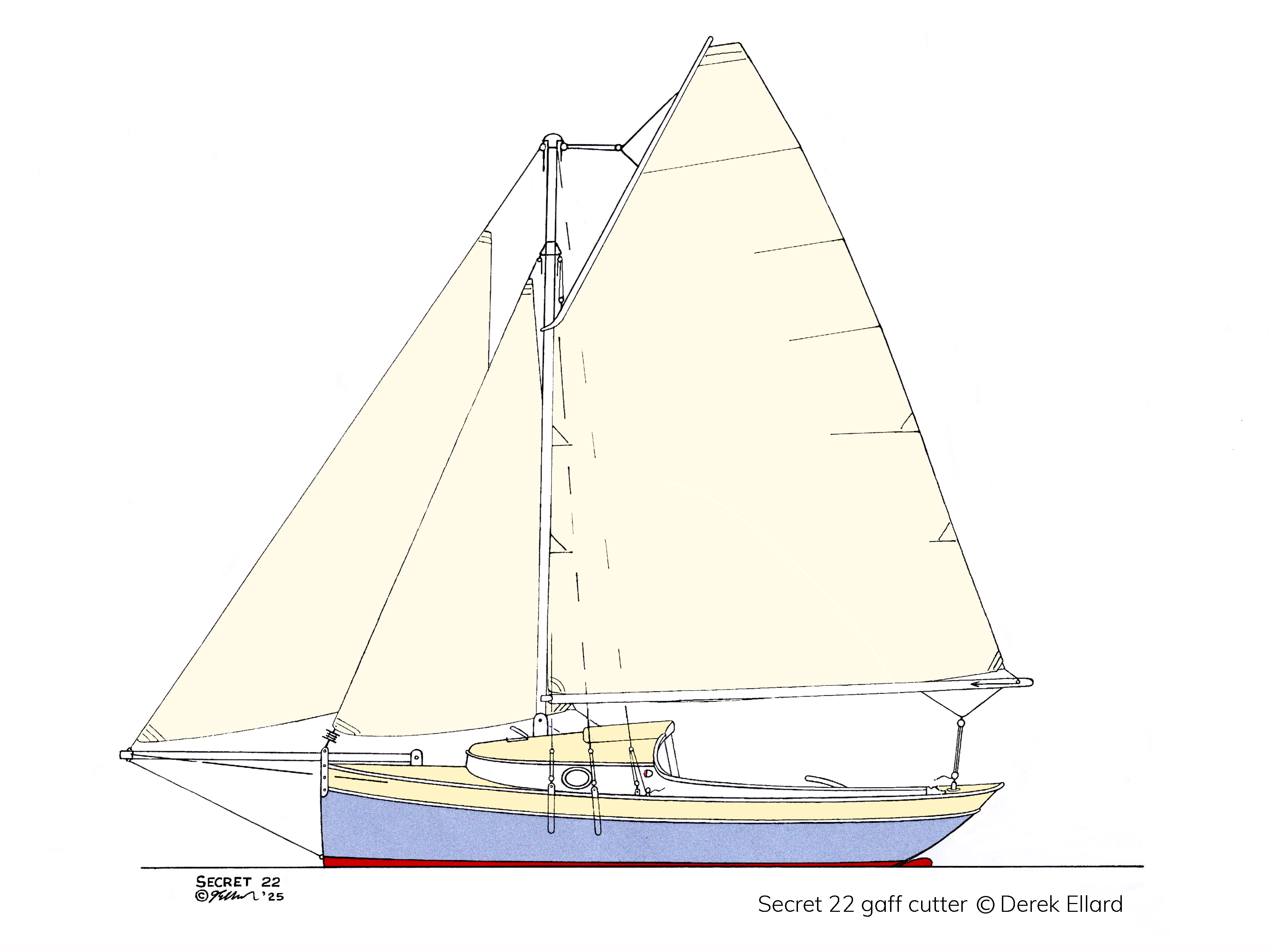

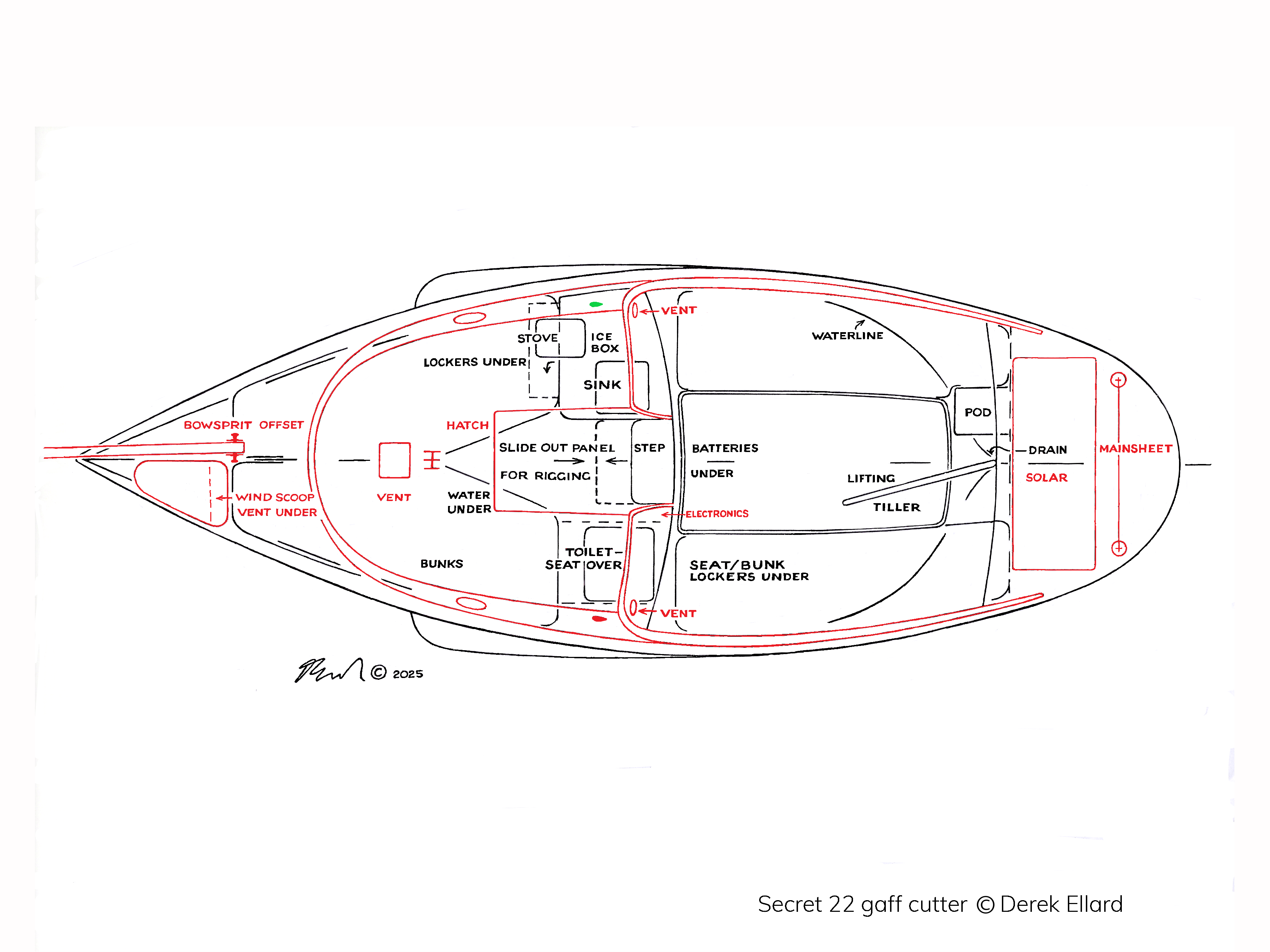

Secret 22 gaff cutter sail plan Secret 22 gaff cutter side elevation Secret 22 gaff cutter plan Secret 22 electric launch side elevation Secret 22 electric launch plan Secret 22 lugsail sailplan Secret 22 lugsail side elevation ◁ ▷


SPECIFICATIONS
Gaff Cutter

LOA
8.8 metres
LOD
6.6 metres
BEAM
2.3 metres
LWL
5.8 metres
DRAUGHT
0.65 metres
BALLAST
220kg fixed lead ballast plus water ballast
CONSTRUCTION
New generation fibreglass engineered for maximum stability and long service life
RIG
Gaff cutter or lugsail yawl
SAIL AREA
LUGSAIL YAWL & GAFF CUTTER
26 sq metres
TOP SPEED
6.5 knots
BERTHS
2 fixed (optional 4)   passengers 7–8
AUXILLIARY ENGINE
2-3HP electric retractable with long-range batteries and solar
SAFETY
Self-righting (fixed keel) multiple watertight and foam-filled compartments.
ACCESSORIES
Retractable pod drive, water jet bow thruster, batteries, navigation and internal lighting, control/media/electronics power point, gennaker, storm jib, oval bronze ports, wind scoop and vents, beaching legs, toilet, stove, sink, freshwater/ballast tanks, boom tent, seat/bunk cushions and much more via a full custom design service.
DESIGNER
Derek Ellard
